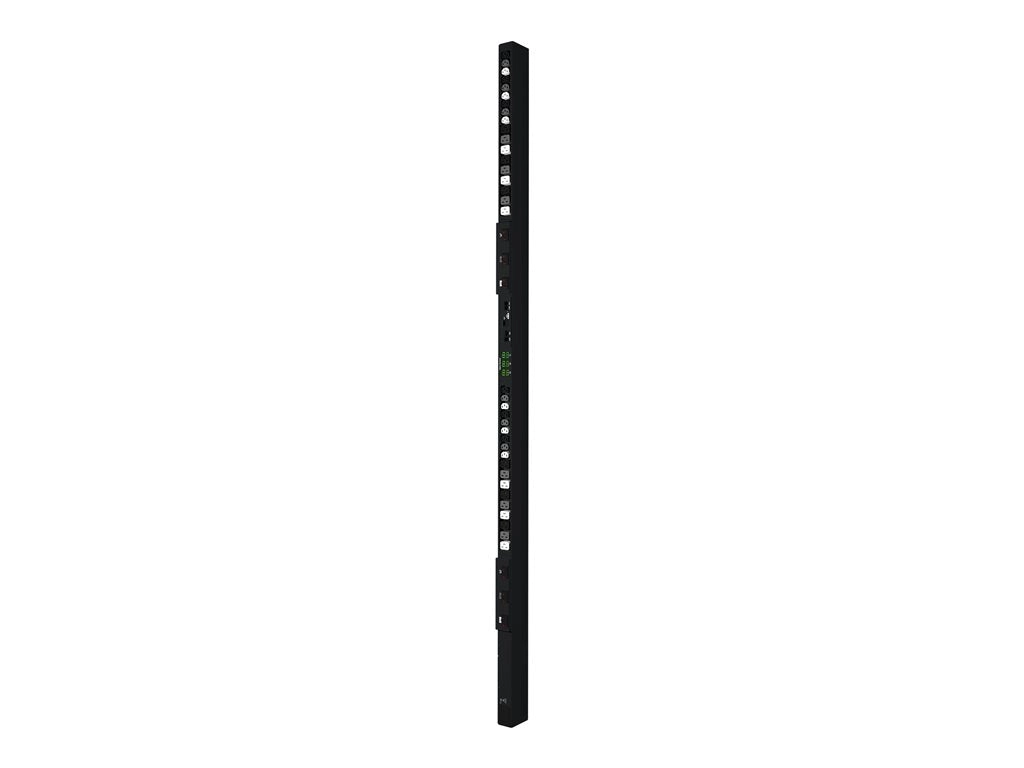

Name: Server Technology PRO1 HDOT Smart PDU C1S36CA-YQME2766 - Power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - 3-phase
SKU: 321643

Product Details ＋

Server Technology PRO1 HDOT Smart PDU C1S36CA-YQME2766 - Power distribution unit (rack-mountable) - AC 208 V - 17.3 kW - 3-phase WYE (star) - Ethernet 10/100, RS-232 - input: IEC 60309 - output connectors: 36 (24 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U

Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Hot-swap network card
Network access is ensured when power is lost to the master unit with backup power provided by the primary link unit.
Star multi-linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
Temperature/humidity monitoring
Master and link units each support two external T/H probes. Receive SNMP-based alerts and email notifications.
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
Per-inlet power sensing
Meets ANSI C12.1 for billing-grade accuracy of current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
Alternating-phase outlets
3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow.

The Server Technology PRO1 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements, are accessible through the built-in web and CLI interfaces as well as through SNMP.
