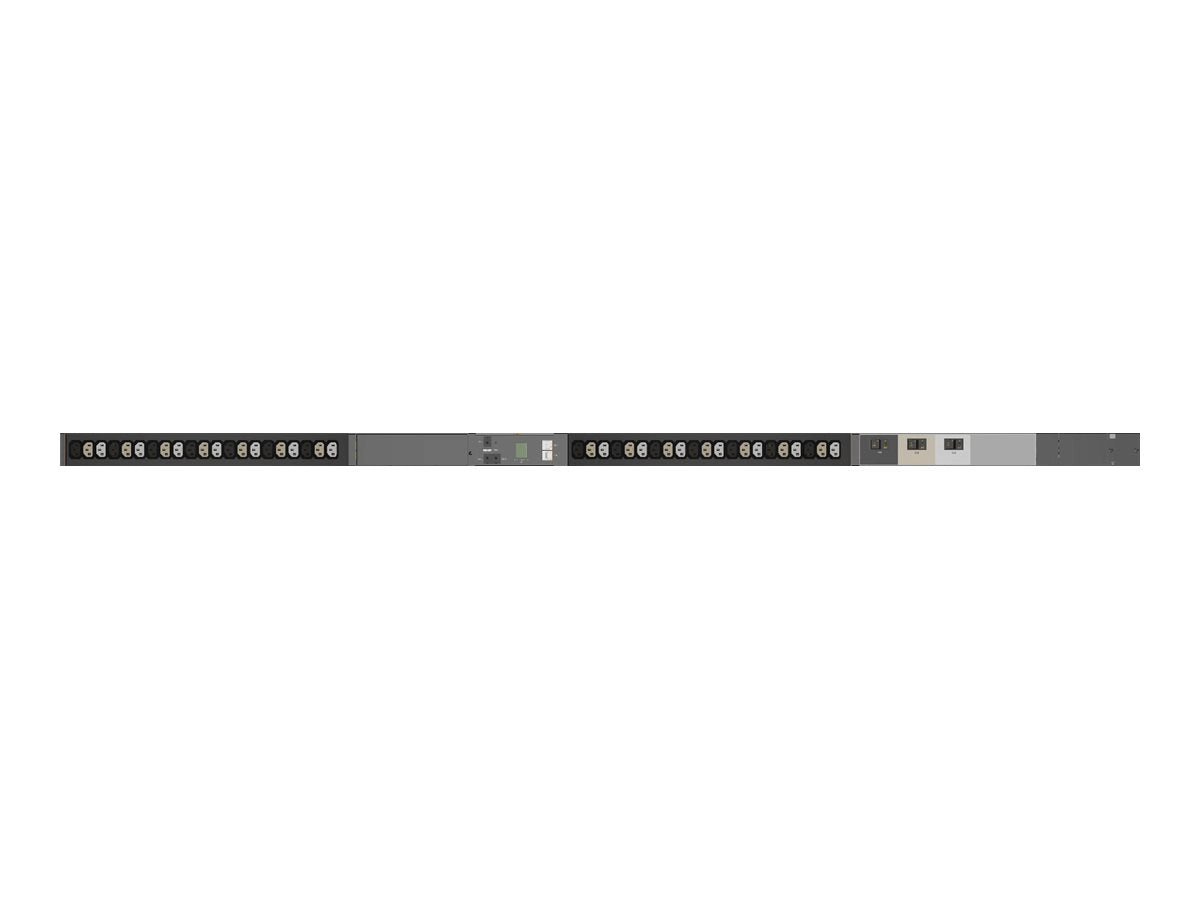

Name: Server Technology PRO2 Smart PDU C2L42CE-DFME2M00 - Link - power distribution unit expansion module (rack-mountable) - AC 208
SKU: 321640

Product Details ＋

Server Technology PRO2 Smart PDU C2L42CE-DFME2M00 - Link - power distribution unit expansion module (rack-mountable) - AC 208 V - 14.4 kW - 3-phase - Ethernet 10/100, RS-232 - input: CS8365 - output connectors: 42 (power IEC 60320 C13)

Network monitoring
Gain access to valuable data through connections including HTTP(S), SSH, Telnet, SNMP, (S)FTP, SMTP, Syslog, LDAP(S), RS-232 serial, and more.
Hot-swap network card
Network access is ensured when power is lost to the master unit with backup power provided by the primary link unit.
Star multi-linking
Provides the ability to link up to four power circuits using one IP address. Primary link provides backup power to network card.
Temperature/humidity monitoring
Master and link units each support two external T/H probes. Receive SNMP-based alerts and email notifications.
Auto-flip current display
Easy-to-read LEDs display current per phase to help prevent overloads and simplify three-phase load balancing in high-density cabinets.
Per-inlet power sensing
Meets ANSI C12.1 for billing-grade accuracy of current per phase. PIPS includes voltage, active power, apparent power, power factor, and energy.
Branch current monitoring
PRO2 monitors current at each breaker branch and provides SNMP-based alerts and emails on high usage that risks a tripped circuit.
Alternating-phase outlets
3-phase power is wired in an alternating fashion per outlet for simplified load balancing, reduced cord lengths, and better airflow.
High temperature rating
This product has been approved for safe and reliable operation in 60°C data center environments.

The Server Technology PRO2 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements, are accessible through the built-in web and CLI interfaces as well as through SNMP. The PRO2 Smart "Master" PDU can be connected to as many as three PRO2 Smart "Link" PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.
